MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple

    Buy cheap MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple from wholesalers

    Buy cheap MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple from wholesalers
    • Buy cheap MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple from wholesalers
    • Buy cheap MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple from wholesalers

    MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple

    Ask Lasest Price
    Brand Name : HT
    Model Number : MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple supplier
    Certification : ISO9001
    Price : USD 1000/piece
    Payment Terms : L/C,T/T, Western Union
    Supply Ability : 1000 piece per month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple

    MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple supplier


    1. ASTM A182/A182M-F22 2018 edition


    GradeHeat Treat TypeAustenitizing/Solutioning Temperature, Minimum or Range, [℃]ACooling MediaQuenching Cool Below ℉[℃]Tempering Temperature, Minimum or Range, ℉[℃]
    F22, Class1,3anneal1650[900]Furnace coolB1250[675]
    Normalize and temper1650[900]Air coolB1250[675]

    GradeUNS DesignationCMnPSSiNiCrMoCoTiOther Elements
    F22 Class 1K215900.05-0.150.30-0.600.0450.0400.50...2.00-2.500.87-1.13.........
    F22 Class 3K215900.05-0.150.30-0.600.0400.0400.50...2.00-2.500.87-1.13.........

    Grade SymbolTensile Strength, min, ksi[Mpa]Yield Strength, min, ksi[Mpa]Elongation in 2 in.[50mm]or 4D, min, %Reduction of Area, min, %Brinell Hardness Number, HBW, unless otherwise indicated
    F22 Class 160[415]30[205]2035170 max
    F22 Class 375[515]45[310]2030156-207

    2. What is ASTM A182 F22 swage nipple?

    Pipe Nipples are commonly used as adapters from one connection type to another. Similar to a pipe nipple in many ways, a swage is a reducing pipe nipple, used to connect two different sized fittings.

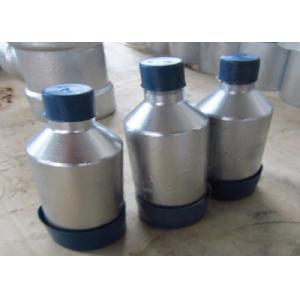

    3. F22 swage nipple photo

    Quality MSS SP-95 1/2"-4" ASTM A182 F22 concentric eccentric swage nipple for sale
